Garment Bagging Machinery
Bagging your garments can now be carried out seamlessly, hygienically, quickly, safely and reliably using our impressive range of automated garment packaging and sealing machines. Cut costs and increase your output using our purpose-built, user-friendly equipment. We have options to suit a variety of business types and sizes.
We also offer machinery rentals on a long and short-term basis, dependent on your requirements.
Please take a look below at the clothing packaging and sealing equipment we currently manufacture. Remember that we provide full technical support and maintenance throughout the life of the product, and can create bespoke designs tailored to your business needs.
Technical Systems (UK) Ltd is an Enfield, London-based business working with clients nationally and internationally.
TS-10 Semi-Automatic Garment Bagging Machine
A cost-effective garment bagging system that’s easy to load and has an impressively high output.
- Can handle rolls of up to 30kg
- Easy loading of poly
- End of roll sensing
- Automatic and fixed bag length
- Comes with 8 preset programmes for different styles of hangers
- Integrated end sealing
- Production: 650 plus per hour
- End-seal only mode

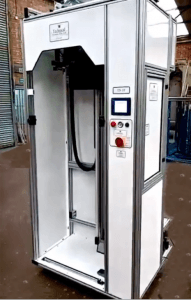

TS-101 Fully Automatic Garment Bagging Machine
An extremely versatile bagging machine that makes automatic bagging easier than ever before.
- Quick change bag width to suit garment.
- Compact enough to fit under standard mezzanine floors, while still giving a 1.7 metre maximum bag length.
- Can be used in semi-automatic mode.
- Production averaging 820 per hour, going up to 1000 on shorter garments.
- All controlled by a user-friendly touch pad.
- End seal only feature.
- Feed through skip facility.

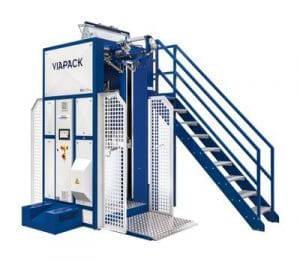

VIAPACK
Fully automatic single or multipiece bagging machine
• Up to 1400 items per hour
• Industrial PC based control unit
• Servo drives
• Biaxial machine
• Fully automated separation of garments
• Fully automated hanging of garments
• Fully automated bagging with length detection
• Fully automated welding of the poly foil
• Programmable horizontal or inclined sealing form
• BM 1201 with second servo unit for bottom sealing
• Fully automated transfer of bagged garments to slide rail or feed off conveyor
• Controller memory for up to 10 parameter sets for different garments
• Driven unrolling device for poly foil
BS1 – Set Pack 1
Helping you to create a safe and clean environment in which to transport set packs of garments.
The main features are:
- Use your own railing systems.
- Save time and energy loading and unloading bulky items.
- There are no unsightly knots to come undone or to get caught up in the railing system.
- Big savings on poly.
- Each bag made to the precise length of pack.
Production rate:
- Approx 360 packs per hour.

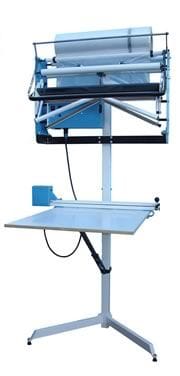

Swift-Pack Universal
The ultimate packing station. This machine is all you need to protect a garment from contamination – all in one unit.
Features: For hanging garments
- Adjustable height for operator’s comfort
- Easy film loading, no centre bar needed.
- Capable of bagging multiple garments.
- Angled or straight seal selectable by flicking switch
- With the table folded in vertical position, sealer can be used as end seal unit
Features: For folding garments
- The film is threaded around roller at the back of the sealer.
- Variable width tube film can be used to suit item to be packed.
To use, simply pull the required amount of film over the table through the opened sealer, insert the folded garment, and bring the seal arm down to seal and cut the film. Then turn the pack around and seal the open side.
The bag can still be trimmed, if required, by reinserting the pack into the end sealer, then sealing and cutting closer to the folded item.
With the table adjusted vertically, the sealer can be used as an adjustable height end sealer when hanging garments are being processed.
This machine is suitable for use by:
- Mail order companies
- Dry cleaners
- Small factories
- Design workshops
- Tailors
- Hire companies

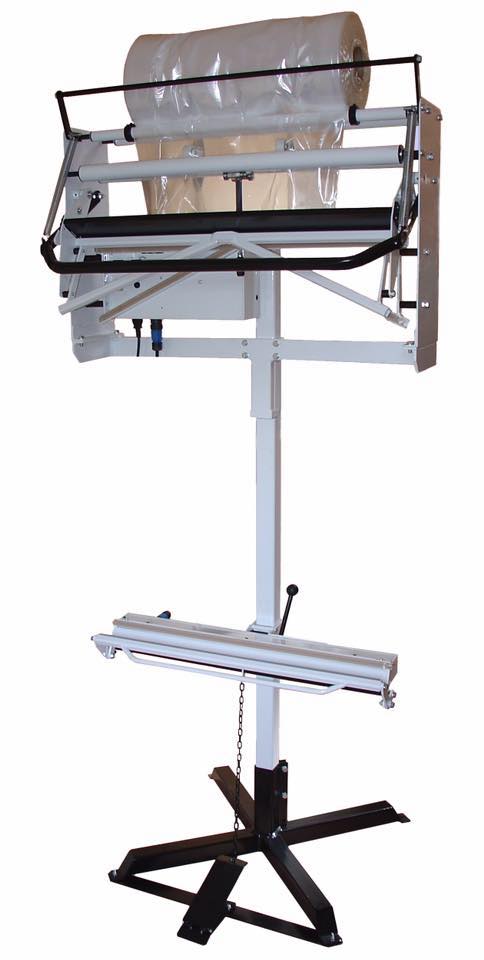

Swift-Pack MB-1 Manual Bagging Machine
Ideal bagging machine for hotels, packing companies and the garment industry.
Sequence of Operation
- The garment is placed on the hanging hook
- Operator the pulls the bag over the garment
- By pulling down the long bar across the front of the machine, this will activate the cutting and sealing process.
- The end seal can then be executed by pressing the front of the seal bar by hand against the bag (foot pedal operation optional)
NOTE:
- The last two actions mentioned above can be executed simultaneously
- The bottom seal is fully adjustable
- Straight or angle seal selectable
Technical Data:
- Seal width: 700mm
- Voltage required: 230v AC
- Max length: 1.7m
- Dimensions: 855mm(w) x 680mm(d) x 1920mm(h)
- Net weight: 73kg

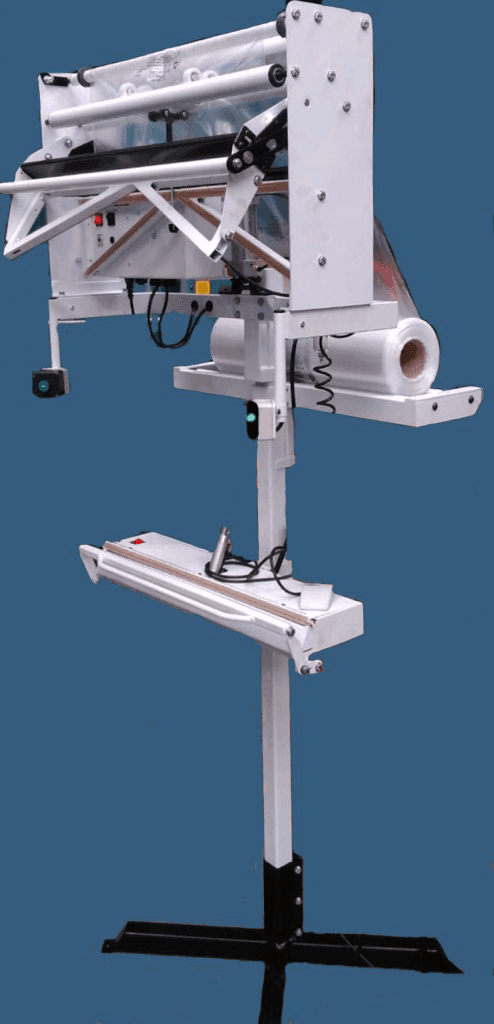

Swift-Pack Air A-1
This machine is more reliable because the closing of the head and actuating of the cutting and sealing system is controlled by air cylinders, and not dependant on the strength of operator.
Sequence of Operation
- The garment is placed on the hanging hook
- Operator the pulls the bag over the garment
- By pressing the buttons either side of the machine the cutting and sealing process will be activated
- The end seal can then be executed by pressing the front peddle
NOTE:
- The last two actions mentioned above can be executed simultaneously
- The bottom seal is fully adjustable
- Straight or angle seal selectable
Technical Data:
- Seal width: 700mm
- Voltage required: 230v AC
- Max length: 1.7m
- Dimensions: 855mm(w) x 680mm(d) x 1920mm(h)
- Net weight: 73kg
TS – 85 Bottom seal Machine
This automatic bottom seal machine seals the bottom of the polybag, regardless of its length. a safe and clean environment for transporting set packs of garments.
- Automatic length sensing
- Photocell detect garment end (no grounding rods)
- Impulse heater (no heating pins)
- Clean and very strong seal
- Designed for installation with existing rail system
- Uniform quality
- Programmable seal distance from garment end
- Programmable seal timer
- MMS electronics reliable control system
- Modification to customer needs

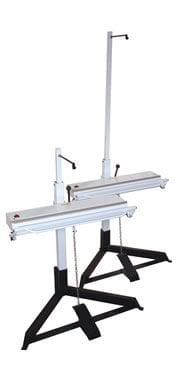

SA 800 Manual End Sealing Machine
Manual sealing of the bottom of polybag for complete protection of the garment.
The main features are:
- Prevents soil from entering the bagged garment
- Eliminates spoilage and lost articles
- Minimises pilferage
- Round element wire available for cut and seal operation
- Can end seal over bags on multi packs
- Adjustable seal time, for the perfect seal
To discuss the garment bagging and packaging equipment you require, contact us at technicalsystems@aol.com
And Enfield-based business, we supply machinery nationwide and internationally.
