Pressing & Warehouse Equipment

Through our Industrial Partners we can now offer sales and service for a range of a different products new and reconditioned.

Steam Tunnels
Garment Racking
Conveyor feeds
Automatic Needle Detector

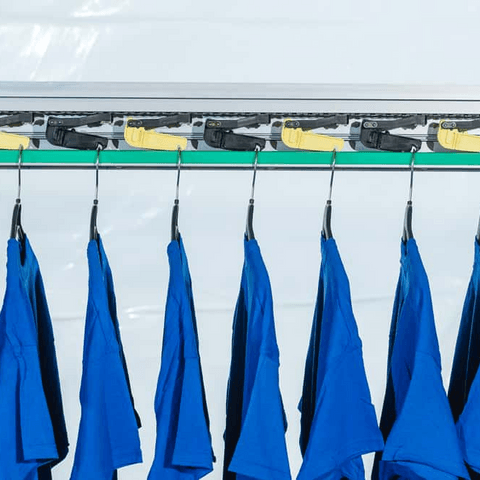

Vetter Clip Conveyor Feed

The clip conveyor, also known as the separation conveyor, is a side-flexing conveyor using an endless chain as a traction mechanism. The clip conveyor is mainly used for transporting clothing.

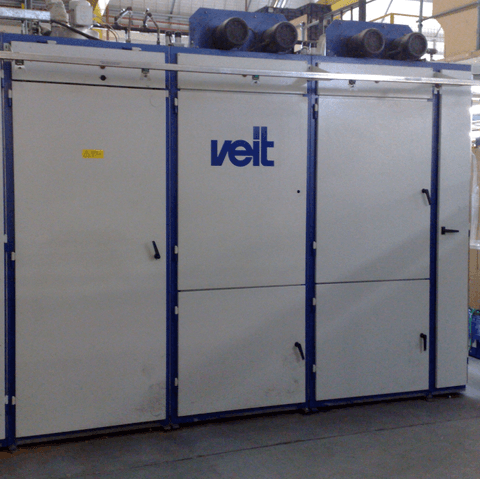

Tunnel Finishing Machine

A Tunnel finisher is a machine that removes wrinkles from garments, using steam, air and heat. This machine is employed to improve the quality and look of a textile product.

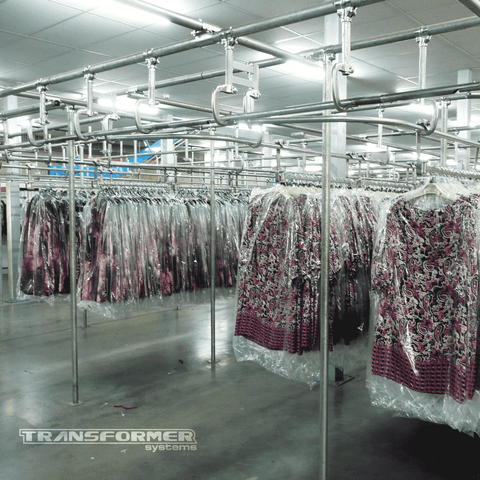

Racking

We can now supply Railing systems for transporting garments around the factory and Racking Systems for Storage.

View Demonstration

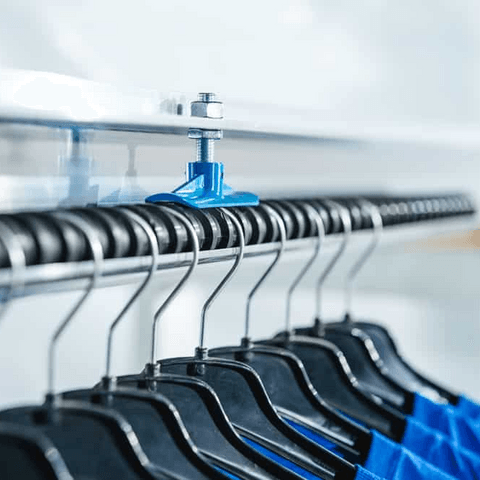

Vetter Screw Conveyor Feed

The screw conveyor is used to transport cloths from A to B to help to speed up your work flow. In order to speed up your work flow, clothing has to be accumulated and clothing has to be cooled due to ironing.

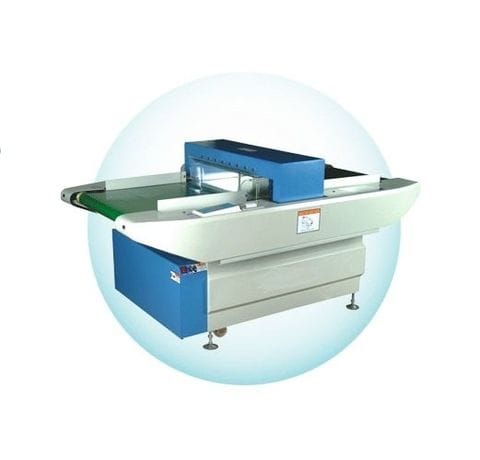

Automatic Needle Detector

Up to date model, with advanced CPU main control system, which can automatically control the strength of the induction.

The core system and digital signal processor is based on a high speed 32bit RISC CPU. This machine uses touch screen technology and has a multi language operating system and easy to use functions.
Each channels’ sensitivity can be adjusted individually.
Smart report system, will produce a range of different printed reports.
All the features lead to an accurate metal and needle chip detection system.
The control system is based on a RS-485 bus technology.
Suitable for detecting metal chips in garments, fabrics, pharmaceutical products, and food and rubber products.

Detection sensitivity: 600mm (w) x 100mm – 200mm (h)
Operation method: Magnetic induction Touch type
Detecting height: 100mm -200mm (standard type: 1200mm)
Alarm: Luminotron position display. Hummer alarm. The stop or return of conveyor belt
Data Output: Choose Chinese and English printed detection report
Power Requirements: AC220V
Power Consumption: 100W
Size: 1850mm (l) x 1050mm (w) x 90 – 100mm (h)

Our core services include:

Automated machinery hire
A second-to-none backup service
Large range of spare parts available
Automated equipment sales to the apparel industry and beyond
Bespoke product design and development

Sewing room automation

Contact Technical Systems (UK) Ltd at technicalsystems@aol.com

Drop us an email or use the form below to discuss your requirements with us.
